UL2464 Electrical Shield Computer Cables
Appliancaton:
As measuring, monitoring and control cable, it is suitable for the places of machine tool manufacturing, complete equipment installation engineering, power station, refrigeratory equipment, OA equipment, data processing system and heating and air condition system.
Properties:
Good insulation property, excellent chemical performance, electromagnetic wave resistance. Excellent crosstalk-resistant property.
Standards: UL 758
Structure:
Conductor: fine strands of tinned copper wire, exellent corrosion resistance.
Insulation: special PVC
Colour: acc. to UL 758
Inner shielding: aluminum foil
Drain wire: bare copper (optional)
Shield: bare or tinned copper shielded
Sheath: 80 heat-resistant flame-resistant PVC, pass VW-1 flame testing
Colour: green (RAL6018) orange(RAL2003) purple(RAL4001)
or refer to customers requirement.
Technical data:
Rated voltage: 300V
Test voltage: 2000V
| Type |
Spec. |
Pairs |
Con. No. |
Per Cond. Dia.φ |
weight /KM |
External dia/least mm |
| UL2464 |
26AWG*2C |
2 |
7 |
0.16 |
45.1 |
6.1 |
| UL2464 |
26AWG*2C |
3 |
7 |
0.16 |
53.8 |
6.5 |
| UL2464 |
26AWG*2C |
4 |
7 |
0.16 |
64.2 |
7.0 |
| UL2464 |
26AWG*2C |
5 |
7 |
0.16 |
75.3 |
7.7 |
| UL2464 |
26AWG*2C |
32 |
7 |
0.16 |
336.8 |
16.1 |
| UL2464 |
26AWG*2C |
33 |
7 |
0.16 |
343 |
16.1 |
| UL2464 |
26AWG*2C |
34 |
7 |
0.16 |
358.1 |
16.8 |
| UL2464 |
26AWG*2C |
35 |
7 |
0.16 |
364.3 |
16.8 |
| UL2464 |
26AWG*2C |
36 |
7 |
0.16 |
370.4 |
16.8 |
| UL2464 |
25AWG*2C |
2 |
11 |
0.14 |
48.8 |
6.1 |
| UL2464 |
25AWG*2C |
3 |
11 |
0.14 |
58.4 |
6.4 |
| UL2464 |
25AWG*2C |
4 |
11 |
0.14 |
69.9 |
6.9 |
| UL2464 |
25AWG*2C |
5 |
11 |
0.14 |
82 |
7.6 |
| UL2464 |
25AWG*2C |
6 |
11 |
0.14 |
94.6 |
8.2 |
| UL2464 |
25AWG*2C |
7 |
11 |
0.14 |
101.9 |
8.2 |
| UL2464 |
25AWG*2C |
31 |
11 |
0.14 |
364 |
15.9 |
| UL2464 |
25AWG*2C |
32 |
11 |
0.14 |
371.3 |
15.9 |
| UL2464 |
25AWG*2C |
33 |
11 |
0.14 |
378.6 |
15.9 |
| UL2464 |
25AWG*2C |
34 |
11 |
0.14 |
394.6 |
16.5 |
| UL2464 |
25AWG*2C |
35 |
11 |
0.14 |
401.8 |
16.5 |
| UL2464 |
25AWG*2C |
36 |
11 |
0.14 |
409.1 |
16.5 |
| UL2464 |
24AWG*2C |
2 |
11 |
0.16 |
61.6 |
7.6 |
| UL2464 |
24AWG*2C |
3 |
11 |
0.16 |
73 |
7.9 |
| UL2464 |
24AWG*2C |
4 |
11 |
0.16 |
88 |
8.7 |
|
|

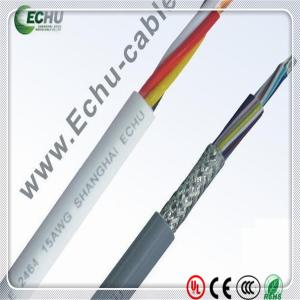

UL2464 Electrical Shield Computer Cables Images
|
